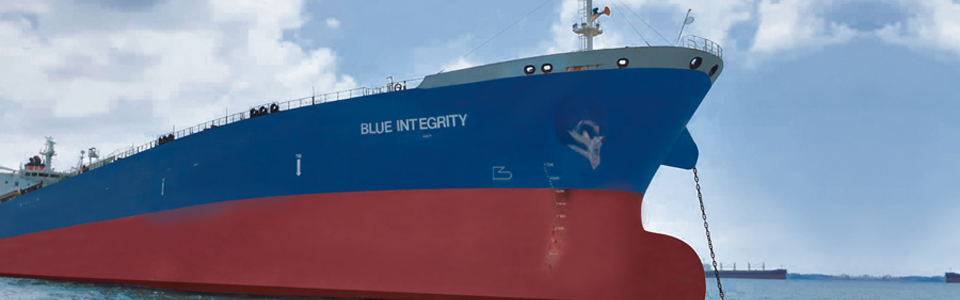

Blue Integrity
| Main particulars |
| Flag | LIBERIA |
| Call Sign | 5LBU6 |
| Year Built | 2009 |
| Shipyard | SHANGHAI WAIGAOQIAO SHIPBUILDING, CHINA |
| Hull Number | 1080 |
| Classification | AMERICAN BUREAU OF SHIPPING |
| Class Notation | +A1, Oil Carrier, ESP, (E), +AMS, +ACCU, SH, SHCM, CPP, CRC, PMP, POT, RES, RW, TCM, VEC |
| IMO Number | 9388778 |
| Gross Tonnage | 62863 |
| Net Tonnage | 31919 |
| Length overall | 245,07 M |
| Length between perpendiculars | 233 M |
| Breadth moulded | 42 M |
| Depth | 22,8 M |
| Draft summer (sw) | 15,372 M |
| Deadweight at summer draft (sw) | 108926 MT |
| Service speed (in ballast) | 13.5 at 32 M/T F.O |
| Service speed (laden) | 12.5 at 35 M/T F.O |
| Cruising range | 21,500 Miles |
| |
| Main Machinery |
| Main engine: | MAN B&W 6S60MC-C
MCR 13560 KW AT 105 RPM
NCR 12204 KW AT 101,4 RPM |
| Auxiliary engines: | YANMAR 6N21AL-UV 3X880 KW |
| Emergency generator: | NORDHAVN GASI7-06E 165KW |
| Oil fired boiler: | AALBORG MISSION OL25000 X2 WATER TYVE, CYL, VERT |
| |
| Cargo Pumps |
| Cargo pumps: | STEAM TURBINE DRIVEN SHINKO KVL450-3 3X 2800 M3/HR CENTRIFUGAL |
| Stripping pumps: | SHINKO FD-ER-300N 560 M3/HR |
| Stripping eductor: | 1 x 450 M3/HR |
| Ballast pumps: | ELECTRIC & STEAM DRIVEN SHINKO CVL 350 2X 1600 M3/HR |
| Ballast eductor: | SHINKO FC-ER-16x10x18 300 M3/HR |
| |
| Deck Machinery |
| Windlass-mooring winch: | HYDRAULIC WINCH NAN JING CHINA 2 x 200 KN @ 21 M/MIN |
| Mooring winch forward: | HYDRAULIC WINCH NAN JING CHINA 2 x 20 KN @ 15 M/MIN |
| Mooring winch mid deck: | HYDRAULIC WINCH NAN JING CHINA 1 x 20 KN @ 15 M/MIN |
| Mooring winch aft: | HYDRAULIC WINCH NAN JING CHINA 3 x 20 KN @ 15 M/MIN |
| |
| Cargo Oil Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| No.1 COT (port and stbd) | 8133,9 | 7971,2 |
| No.2 COT (port and stbd) | 8133,9 | 7971,2 |
| No.3 COT (port and stbd) | 10949,9 | 10730,9 |
| No.4 COT (port and stbd) | 10949,9 | 10730,9 |
| No.5 COT (port and stbd) | 10949,9 | 10730,9 |
| No.6 COT (port and stbd) | 10604,2 | 10392,1 |
| Slop tank (port and stbd) | 4923.2 | 4824,6 |
| TOTAL | 130128 | 127525,5 |
| |
| Other Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| Fuel tanks | 3442,6 | 3373,7 |
| Diesel Oil tanks | 316,1 | 309,7 |
| Lubricating oil tanks | 201,2 | 197,3 |
| Fresh water tanks | 506,9 | |
| Drinking water tanks | 67 | |
| Ballast water tanks total | 41811,1 | |
| Various other tanks | 132,4 | |

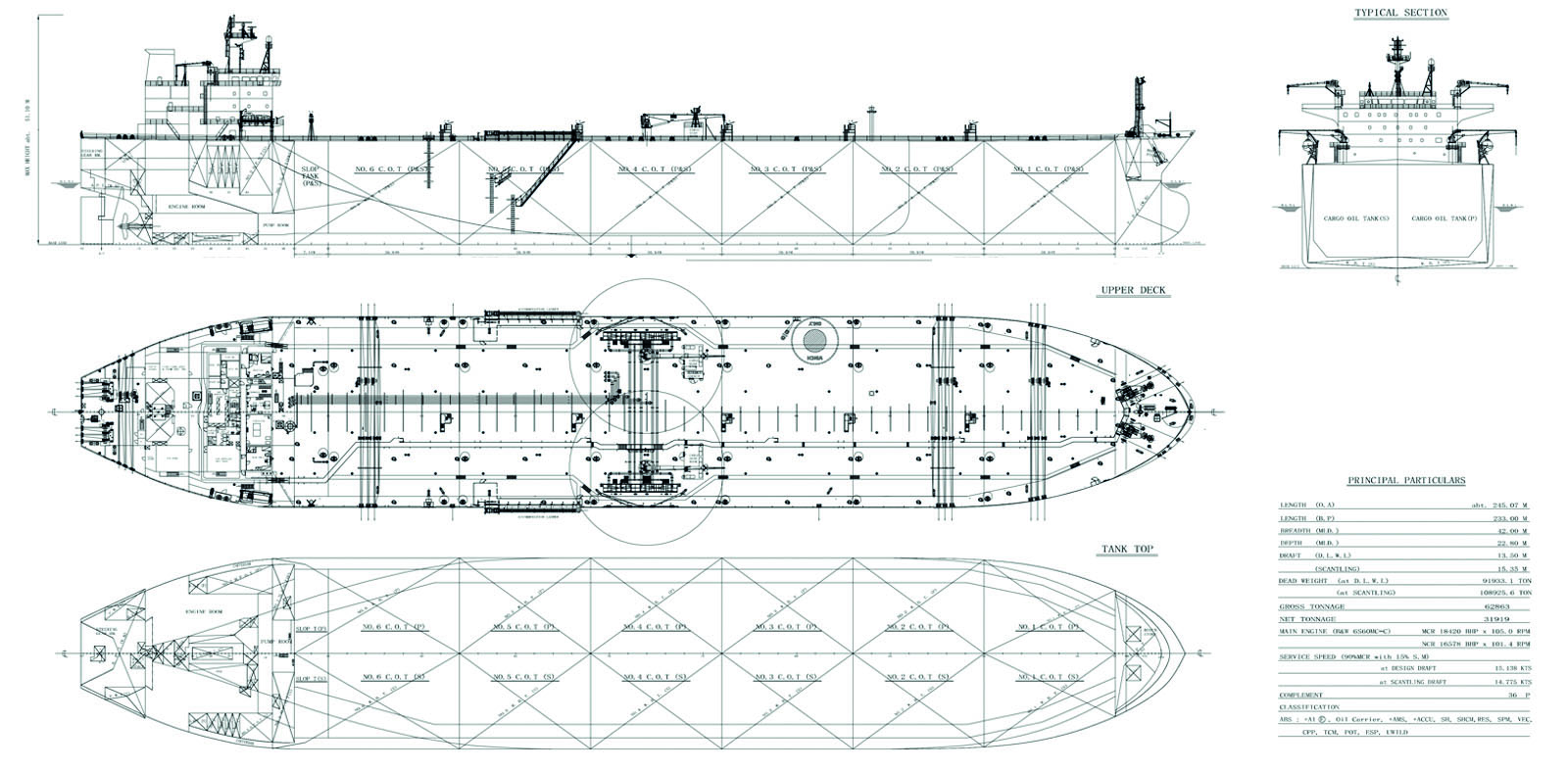

| General Arrangement |
|
|
 |
