Blue Power
| Main particulars |
| Flag | LIBERIA |
| Call Sign | D5KT8 |
| Year Built | 2003 |
| Shipyard | TSUNEISHI SHIPBUILDING CO LTD. |
| Hull Number | 1253 |
| Classification | LLOYDS REGISTER |
| Class Notation | 100A1 DOUBLE HULL OIL TANKER,IWS,ESP,LI LMC,IGS,UMS,COW,ETA,SBT,SHIPRIGHT(SERS,MPMS,SCM) |
| IMO Number | 9268112 |
| Gross Tonnage | 57664 |
| Net Tonnage | 32077 |
| Length overall | 240,50 M |
| Length between perpendiculars | 230,00 M |
| Breadth moulded | 42,00 M |
| Depth | 21,20 M |
| Draft summer (sw) | 14,88 M |
| Deadweight at summer draft (sw) | 106360 MT |
| Service speed (in ballast) | 15,00 KNOTS |
| Service speed (laden) | 14,10 KNOTS |
| Fuel Oil consumption (main eng) | 45,4 MT/DAY @ FULL POWER/SPEED |
| Cruising range (nm) | NOT KNOWN YET |
| |
| Main Machinery |
| Main engine: | "MITSUI MAN B&W 6S60MC MCO 11840 kW @ 104 RPM CSO 10660 kW @ 100 RPM |
| Auxiliary engines: | YANMAR 6N21AL-DV 3 x 640 kW
|
| Emergency generator | MITSUI ZOSEN BF6L913C 137KW |
| Oil fired boiler: | MITSUBISHI MAC-25B 2 x 25000 KG/HR |
| |
| Cargo Pumps |
| Cargo Pumps | STEAM TURBINE DRIVEN SHINKO KV400 3 x 2500 M3/HR |
| Stripping pumps: | STEAM DRIVEN SHINKO KPH200 1 x 200 M3/HR |
| Stripping eductor: | 1 x 300 M3/HR |
| Ballast pumps: | ELECTRIC DRIVEN SHINKO CV350 2 x 1500 M3/HR |
| Ballast eductor: | 1 x 300 M3/HR |
| |
| Deck Machinery |
| Windlass-mooring winch: | HYDRAULIC WINCH KAWASAKI 2 x 359 kN @ 9 M/MIN |
| Mooring winch forward: | HYDRAULIC WINCH KAWASAKI 2 x 147 kN @ 15 M/MIN |
| Mooring winch mid deck: | HYDRAULIC WINCH KAWASAKI 1 x 147 kN @ 15 M/MIN |
| Mooring winch aft: | HYDRAULIC WINCH KAWASAKI 3 x 147 kN @ 15 M/MIN |
| |
| Cargo Oil Tanks (12 TANKS, 2 SLOP TANKS) |
| Compartment | 100% cub.metres | 98%cub.metres |
| No.1 COT (center) | 16612,00 | 16279,80 |
| No.2 COT (center) | 20087,40 | 19685,70 |
| No.3 COT (center) | 20188,00 | 19784,20 |
| No.4 COT (center) | 20188,20 | 19784,40 |
| No.5 COT (center) | 20188,80 | 19785,02 |
| No.6 COT (center) | 19483,90 | 19094,22 |
| Slop tank (port and strb) | 4743,90 | 4649,02 |
| TOTAL | 121492,20 | 119062,36
|
| |
| Other Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| Fuel tanks | 3435,70 | 3366,99
|
| Diesel Oil tanks | 303,80 | 297,72
|
| Lubricating oil tanks | 24,40 | 23,91 |
| Fresh water tanks | 358,40 | 351,23
|
| Drinking water tanks | 125,40 | 122,89 |
| Ballast water tanks | 39420,30 | 38631,89 |
| Various other tanks | 126,90 | 124,36 |

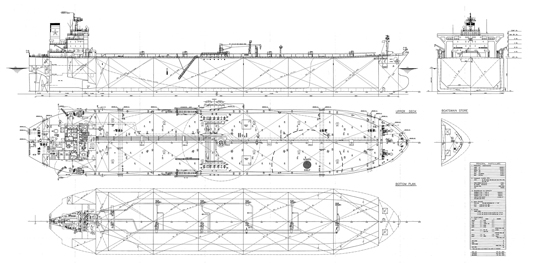

| General Arrangement |
|
|
 |
