Blue Pride
| Main particulars |
| Flag | LIBERIA |
| Call Sign | D5KT9 |
| Year Built | 2004 |
| Shipyard | DAEWOO SHIPBUILDING & MARINE ENGINEERING KOREA |
| Hull Number | 5249 |
| Classification | LLOYDS REGISTER |
| Class Notation | 100A1 DOUBLE HULL OIL TANKER,ESP,SHIPRIGHT(SDA,FDA,CM)L1,IWS,SPM,LMC,UMS,IGS,COW,ETA,SCM |
| IMO Number | 9281011 |
| Gross Tonnage | 62845 |
| Net Tonnage | 34739 |
| Length overall | 249,90 M |
| Length between perpendiculars | 239,00 M |
| Breadth moulded | 44,00 M |
| Depth | 21,00 M |
| Draft summer (sw) | 14,82 M |
| Deadweight at summer draft (sw) | 115048 MT |
| Service speed (in ballast) | 15,50 KNOTS |
| Service speed (laden) | 14,70 KNOTS |
| Fuel Oil consumption (main eng) | 52 mt/day @ SERVICE SPEED |
| Cruising range (nm) | 21000 nm |
| |
| Main Machinery |
| Main engine: | HSD MAN B&W 7S60MC MCR 19460 BHP @ 105 RPM NCR 17510 BHP @ 101,4 RPM |
| Auxiliary engines: |
STX 6L23 3 x 960 kW |
| Emergency generator | GPC NT855DM 250 kW |
| Oil fired boiler: | MITSUBISHI MAC-30B 2 x 30000 KG/HR |
| |
| Cargo Pumps |
| Cargo Pumps | STEAM TURBINE DRIVEN SHINKO KVL450-3 3 x 3000 M3/HR |
| Stripping pumps: | STEAM DRIVEN SHINKO KPH200 1 x 200 M3/HR |
| Stripping eductor: | 2 x 500 M3/HR |
| Ballast pumps: | ELECTRIC DRIVEN SHINKO CVL400-2 2 x 2000 M3/HR |
| Ballast eductor: | 1 x 400 M3/HR |
| |
| Deck Machinery |
| Windlass-mooring winch: | ELECTRIC DRIVEN TYPE WINCH KOCKS BREMEN 2 x 400 kN @ 9 M/MIN |
| Mooring winch forward: | ELECTRIC DRIVEN TYPE WINCH KOCKS BREMEN 2 x 200 kN @ 15 M/MIN |
| Mooring winch mid deck: | ELECTRIC DRIVEN TYPE WINCH KOCKS BREMEN 1 x 200 kN @ 15 M/MIN |
| Mooring winch aft: | ELECTRIC DRIVEN TYPE WINCH KOCKS BREMEN 3 x 200 kN @ 15 M/MIN |
| |
| Cargo Oil Tanks (12 TANKS, 2 SLOP TANKS) |
| Compartment | 100% cub.metres | 98%cub.metres |
| No.1 COT (center) | 8632,30 | 8459,70 |
| No.2 COT (center) | 11217,80 | 10993,40 |
| No.3 COT (center) | 11217,80 | 10993,40 |
| No.4 COT (center) | 11217,80 | 10993,40 |
| No.5 COT (center) | 11217,80 | 10993,40 |
| No.6 COT (center) | 9899,80 | 9701,80 |
| Slop tank (port and strb) | 1351,30 | 1324,30 |
| TOTAL | 129509,20 | 126918,80 |
| |
| Other Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| Fuel tanks | 2979,70 | 2920,11
|
| Diesel Oil tanks | 216,30 | 211,97
|
| Lubricating oil tanks | 291,60 | 285,77 |
| Fresh water tanks | 182,50 | 178,85
|
| Drinking water tanks | 182,50 | 178,85 |
| Ballast water tanks | 42224,10 | 41379,62 |
| Various other tanks | 183,20 | 179,54 |

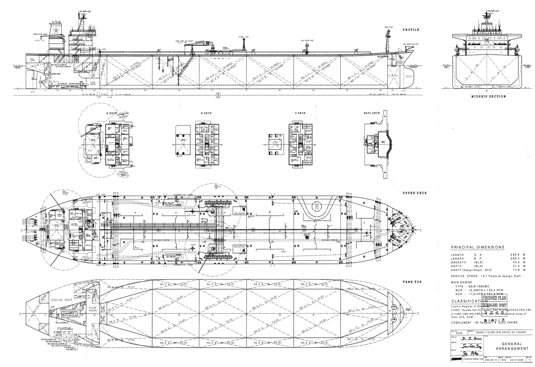

| General Arrangement |
|
|
 |
